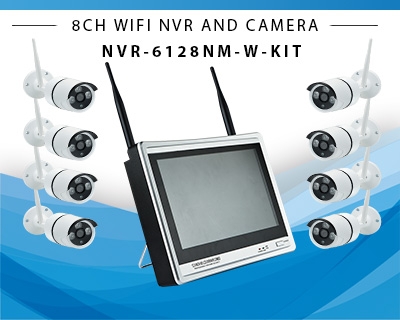

Module No.: NVR-6128NM-W |
||
|
AV(audio/video) input |
Operating System |
Embedded Linux OS |
|
Network Video |
8CH |
|
|
Network video input broadbank |
20Mbps |
|
|
AUdio Bitrate |
64Kbps |
|
|
AV (audio/video) output |
HDMI input |
1ch，resolution：1024x768，1366x768， |
|
VGA output |
1440x900,1920x1080p |
|
|
1ch，resolution：1024x768，1366x768， |
||
|
AV CODEC Specification |
Video Resolution |
1440x900,1920x1080p |
|
synch-playback |
4CH |
|
|
Video Control |
Video/Capture mode |
Maual、Time、Motion、Alarm |
|
Playback mode |
Real time、Routine、Event |
|
|
Backup |
USB backup |
|
|
Hard Disk |
Type |
1*SATA interface |
|
Max Capacity |
4 TB at most for each |
|
|
External Interface |
Network Interface |
1 adaptable RJ45 10M/100M, 1 WIFI interface |
|
USB Interface |
2 USB 2.0 |
|
|
Network Control |
Protocol |
UPnP (play&plug)/SMTP (email survice)/PPPoE (dial-up) |
|
Others |
Power Supply |
DC12V2A |
|
Power Consumption (W) |
≤5W（Without HDD） |
|
|
Operate Temperature (°C) |
-10℃~+55℃ |
|
|
Working Humidity (%) RH |
10%~90% |
|
|
Size |
280mm（W）×230mm（V）×55mm（H） |
|
|
Weight（excluding HDD） |
≤2.5Kg |
|
|
IPC Specification：DC-BC100W |
||
|
Details |
Sensor |
1/3” Progressive Scan Sensor |
|
Signal System |
PAL/NTSC |
|
|
Resolution |
1280x720 16:9 High Defination |
|
|
Minimum illumination |
Color: 0.1 Lux; B/W: 0.01 Lux |
|
|
Shutter |
1/25s to 1/25,000s |
|
|
Lens |
3.6mm |
|
|
OSD |
Date Time & Title |
|
|
White Balance |
Auto |
|
|
Day&Night |
Auto / Color / BW |
|
|
3D-DNR |
Auto |
|
|
Mirror/Flip |
On / Off |
|
|
Frame Specification |
Three Streaming at the Same Time: |
|
|
H.264 1280x720@15fps or below |
||
|
H.264 640x480@15fps or below |
||
|
S/N |
> 39.1 Db |
|
|
Interface |
RJ45 / WIFI 802.11b/g/n |
|
|
General Specification |
Anti-thunder Level |
Standard IEC61000-4-5 |
|
Working Temperature/Humidity |
-10℃ to +50℃ / 30% to 80% RH |
|
|
Working Temperature/Humidity |
-20℃ to +60℃ / 20% to 90% RH |
|
|
Power Input |
DC12V-1A |
|
|
Power consumption |
≤2W |
|
|
Size |
205(L)×70(W)×55 (H)mm |
|
|
Weight |
500g |
|
|
Level of Protection |
IP66 |
|
|
IPC Specification：DC-BC130W |
||
|
Details |
Sensor |
1/3” Progressive Scan Sensor |
|
Signal System |
PAL/NTSC |
|
|
Resolution |
1280x960 4:3 High Defination |
|
|
Minimum illumination |
Color: 0.1 Lux; B/W: 0.01 Lux |
|
|
Shutter |
1/25s to 1/25,000s |
|
|
Lens |
4mm |
|
|
OSD |
Date Time & Title |
|
|
White Balance |
Auto |
|
|
Day&Night |
Auto / Color / BW |
|
|
3D-DNR |
Auto |
|
|
Mirror/Flip |
On / Off |
|
|
Frame Specification |
Three Streaming at the Same Time: |
|
|
H.264 1280x960@15fps or below |
||
|
H.264 640x480@15fps or below |
||
|
S/N |
> 39.1 Db |
|
|
Interface |
RJ45 / WIFI 802.11b/g/n |
|
|
General Specification |
Anti-thunder Level |
Standard IEC61000-4-5 |
|
Working Temperature/Humidity |
-10℃ to +50℃ / 30% to 80% RH |
|
|
Working Temperature/Humidity |
-20℃ to +60℃ / 20% to 90% RH |
|
|
Power Input |
DC12V-1A |
|
|
Power consumption |
≤2W |
|
|
Size |
205(L)×70(W)×55 (H)mm |
|
|
Weight |
500g |
|
|
Level of Protection |
IP66 |
|
