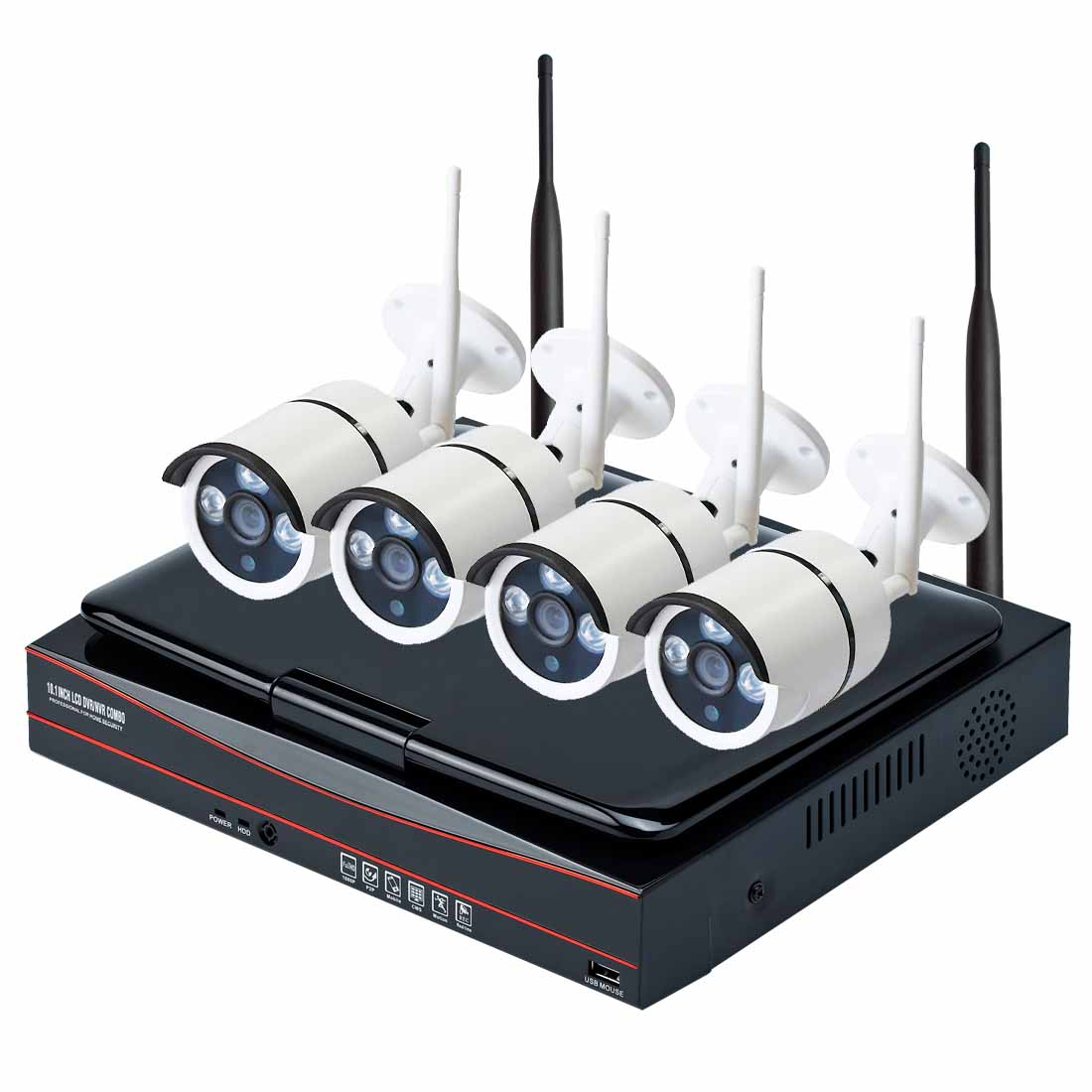

10inch 8ch wireless NVR

10inch 8ch wireless NVR

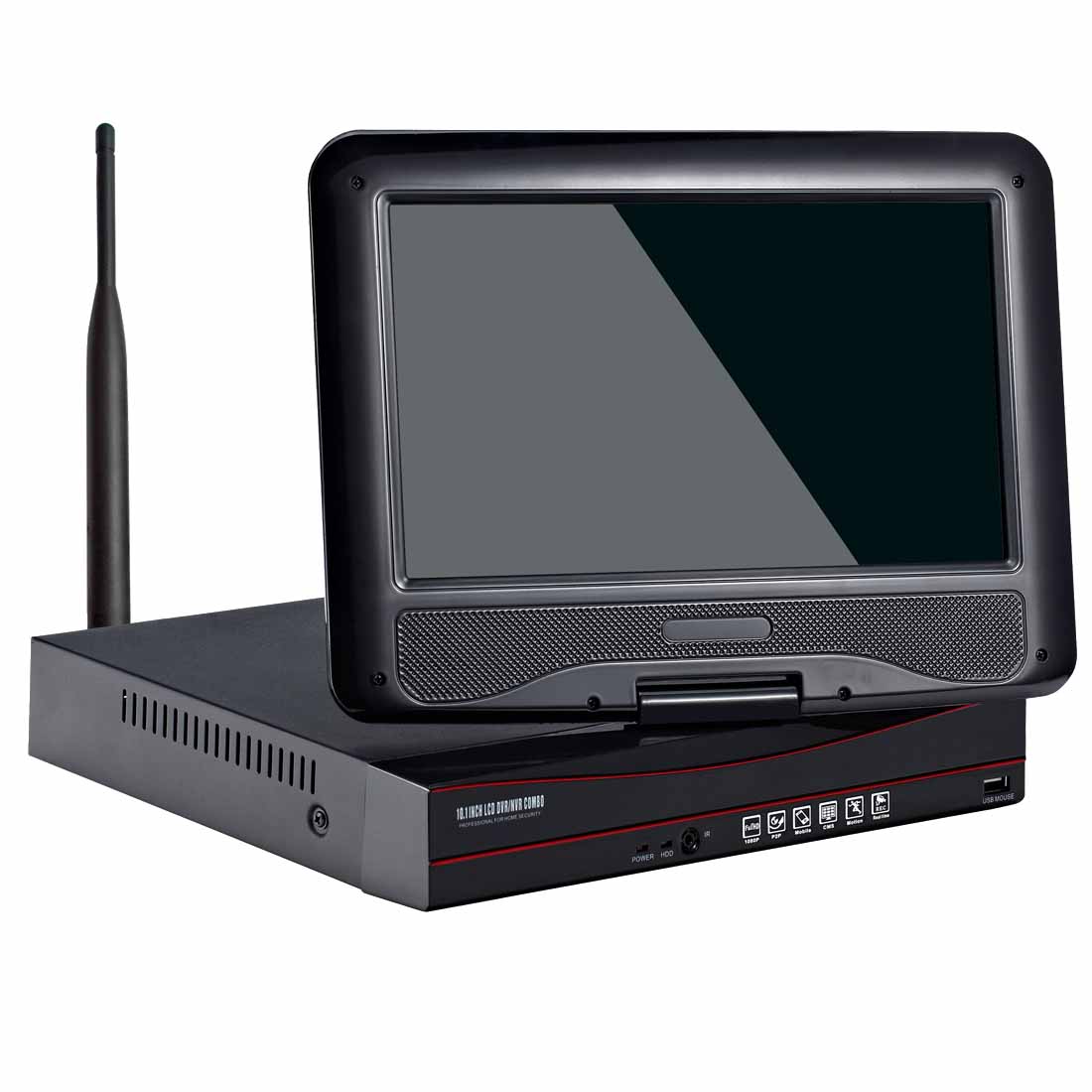

*10inch high definition screen
*8ch video input
*Built in wifi module
*Wireless installation

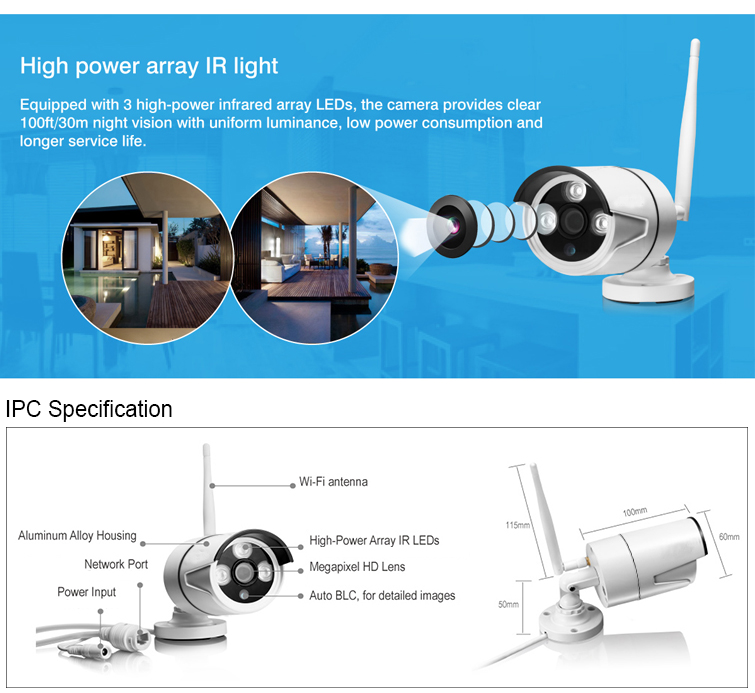

Wifi camera:
*1.0MP / 1.3MP camera
*Nigh vision
*Long distance reach 100M

Product details

Parameter

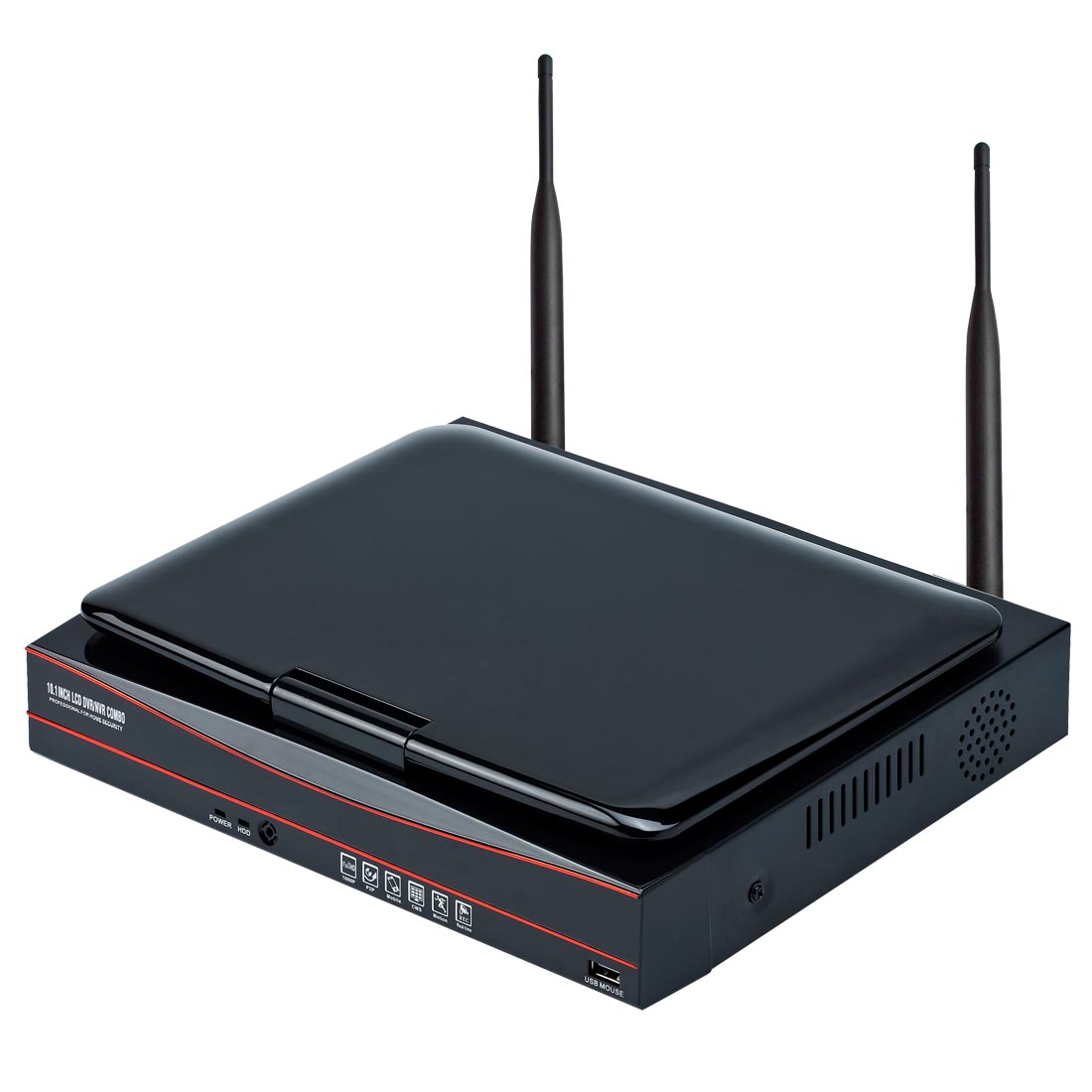

10inch 8ch wireless NVR

DC TIMES 4CH WIFI NVR KIT security system is special designed with 7" or 10" LCD monitor to realize review your footage easily
on the built-in monitor which saves you huge cost for a separate monitor.Instant email alerts only when motion is detected, catching every essential moment, save hard drive record storage.
Excellent metal shell material ensure its waterproof(IP66) and vandal proof provide you a convenient and safe life.

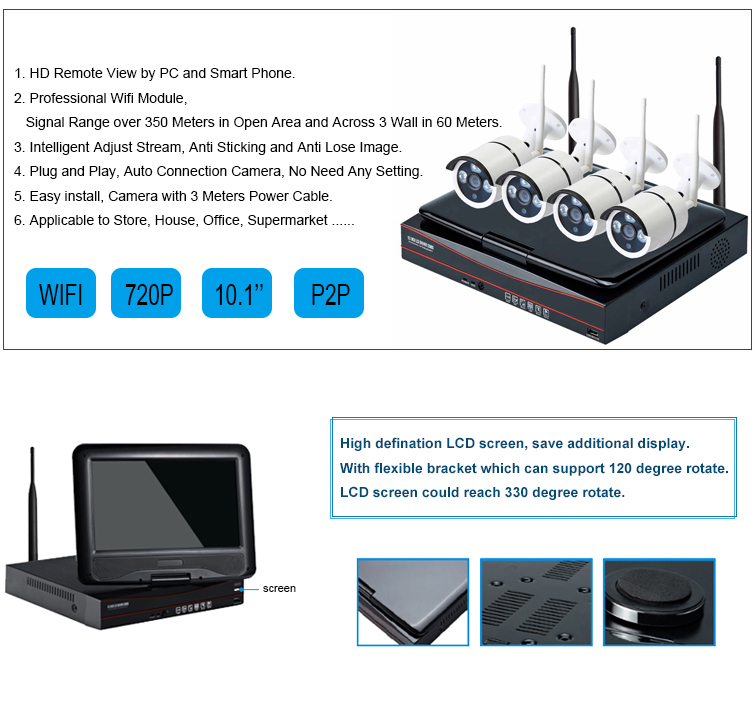

无线黑 A2

Specification：wireless nvr
AV(audio/video) input	Operating System	Embedded Linux OS
	Network Video	8CH
	Network video input broadbank	20Mbps
	AUdio Bitrate	64Kbps
AV (audio/video) output	HDMI input	1ch，resolution：1024x768，1366x768， 1440x900,1920x1080p
	VGA output	1ch，resolution：1024x768，1366x768，
	VGA output	1440x900,1920x1080p
AV CODEC Specification	Video Resolution	D1/720P
AV CODEC Specification	synch-playback	4CH
Video Control	Video/Capture mode	Maual、Time、Motion、Alarm
	Playback mode	Real time、Routine、Event
	Backup	USB backup
Alarm	Alarm Input	4ch (optional)
Alarm	Alarm Output	1ch (optional)
Hard Disk	Type	1*SATA interface
Hard Disk	Max Capacity	4 TB at most for each
External Interface	Network Interface	1 adaptable RJ45 10M/100M, 1 WIFI interface
External Interface	USB Interface	2 USB 2.0
Network Control	Protocol	UPnP (play&plug)/SMTP (email survice)/PPPoE (dial-up) DHCP (Automatically obtain an IP address), etc…
Others	Power Supply	DC12V3A
	Power Consumption (W)	≤5W（Without HDD）
	Operate Temperature (°C)	-10℃~+55℃
	Working Humidity (%) RH	10%~90%
	Size	280mm（W）×230mm（V）×55mm（H）
	Weight（excluding HDD）	≤2.5Kg

易视云

Packing list:
1. 1* DVR
2. 1* Power supply for DVR
3. 1* Mouse for DVR
4. 2* Antanna for DVR
5. 8* cameras
6. 8* Antanna for Camera
7. 8* Power supply for camera
8. User manual of DVR
9. Screw and other parts

Carton: 2sets a carton
Carton size: 400*340*590mm
Net weight: 13.5kg/carton
Gross weight: 14.5kg/carton
