* Camera lens: High-definition color camera, big wide Angle

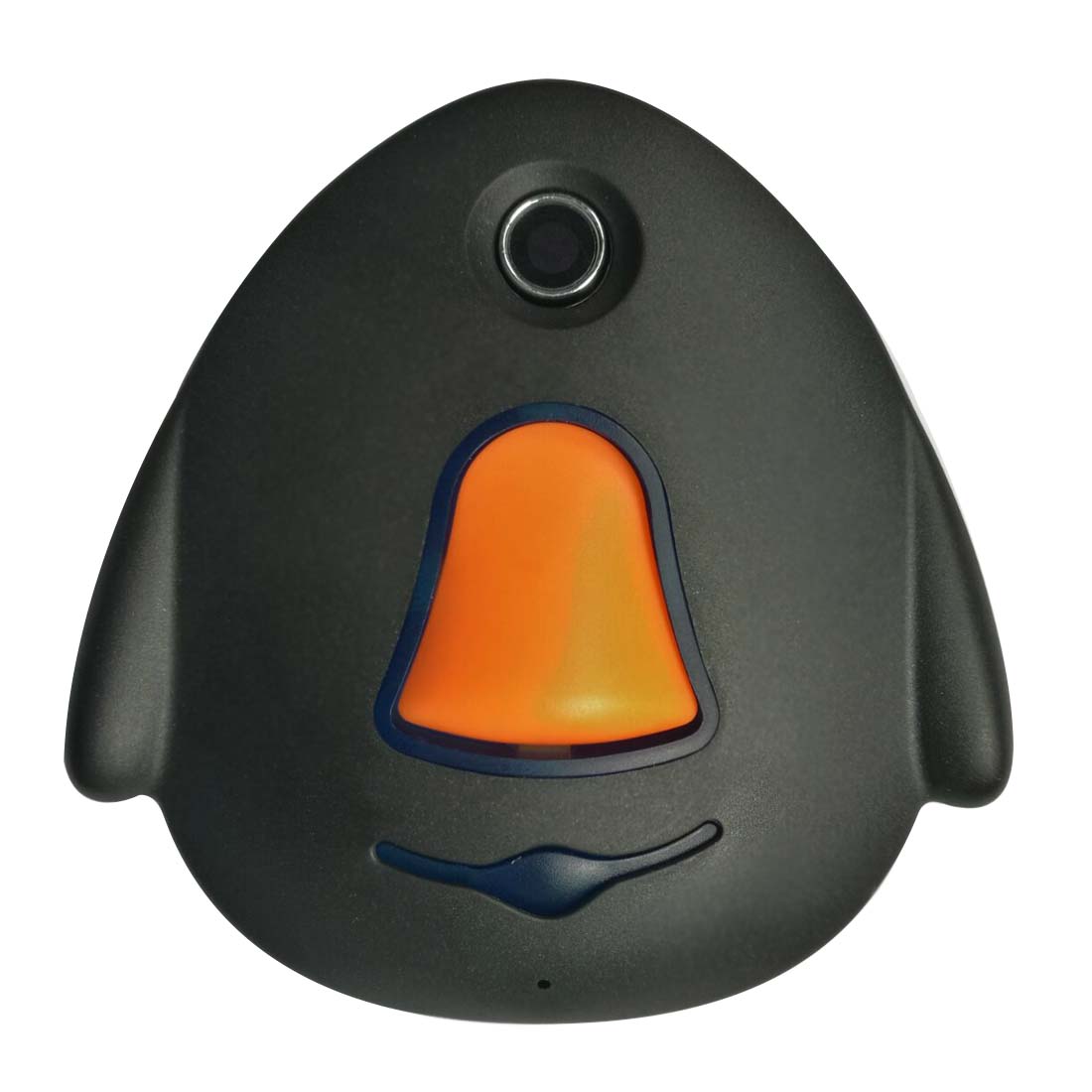

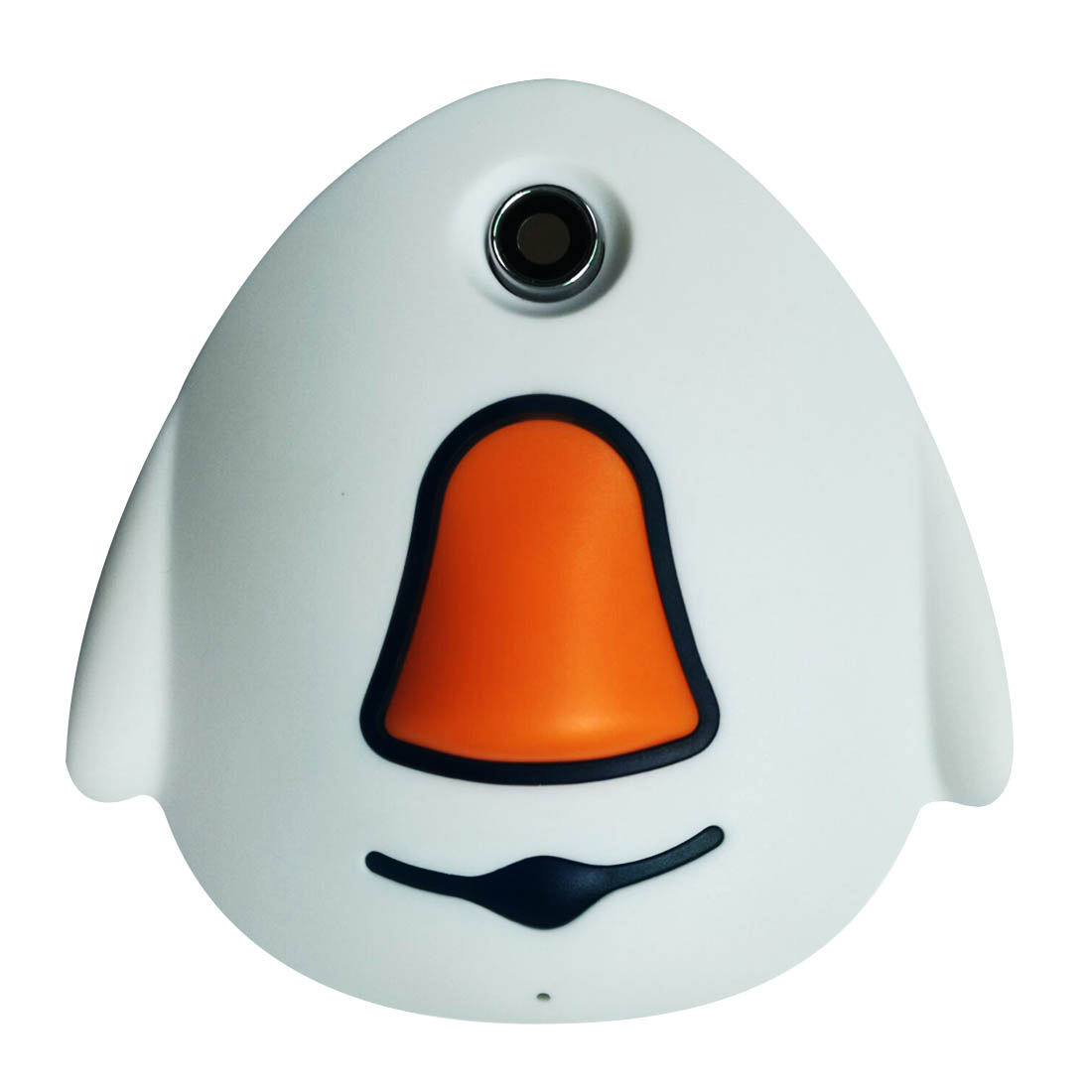

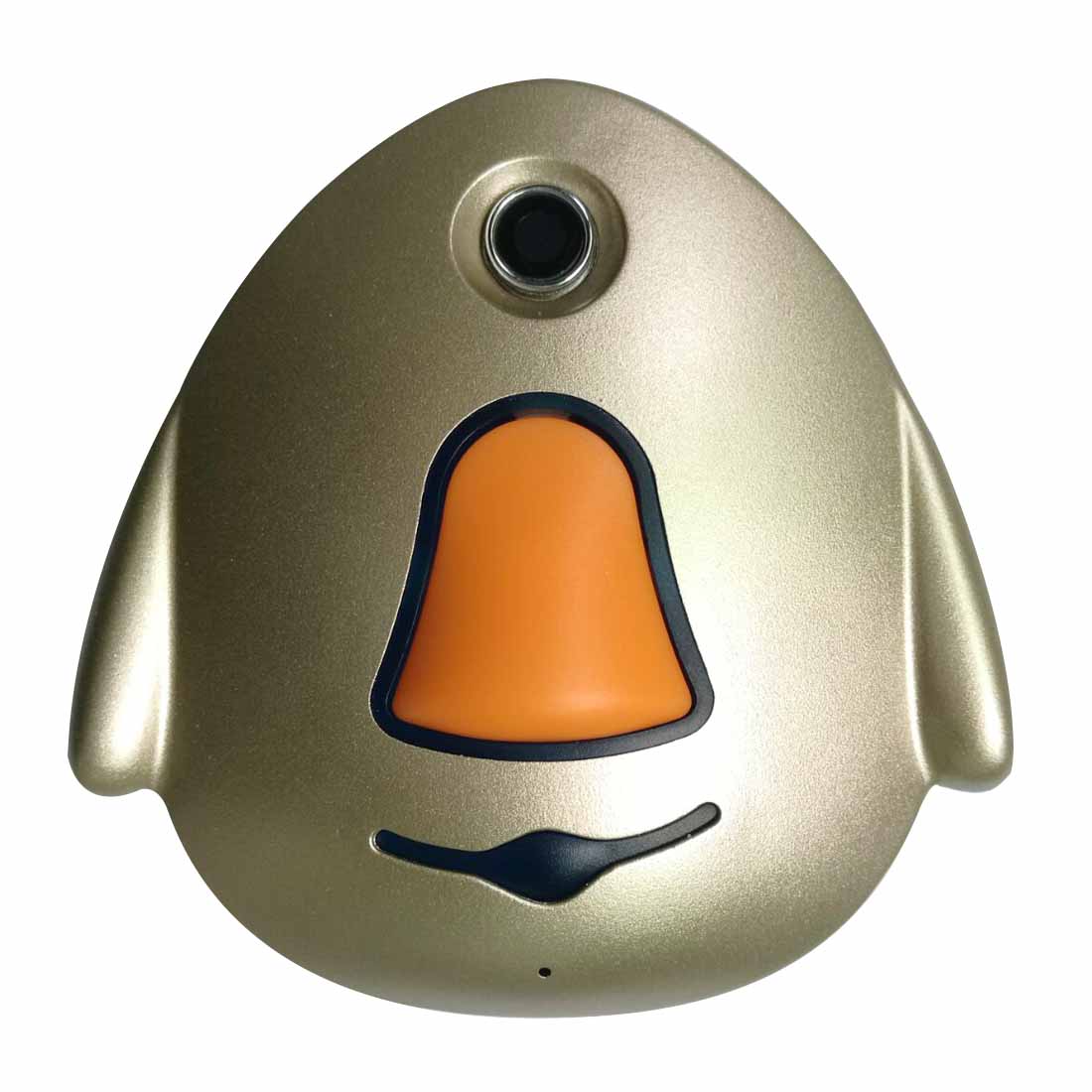

* Color: Black Silver Red White
* Video: H.264 CODEC, Resolution 720x576 @15fps
* Audio: Built-in microphone and speaker
* WiFi: Support: Wireless protocol
* Wireless standard: Support Station, Access Point, and Wi-Fi—Direct

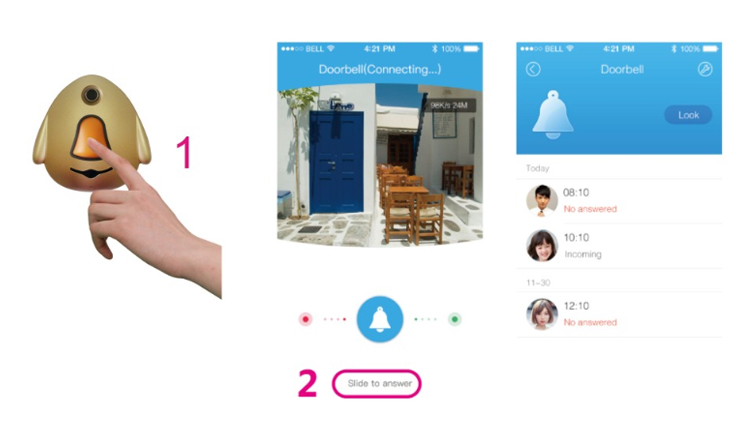

* Support Smart phone APP(Android, IOS, IPAD) to view and speak
* Security: Support WPA&WPS 2.0 encryption
|

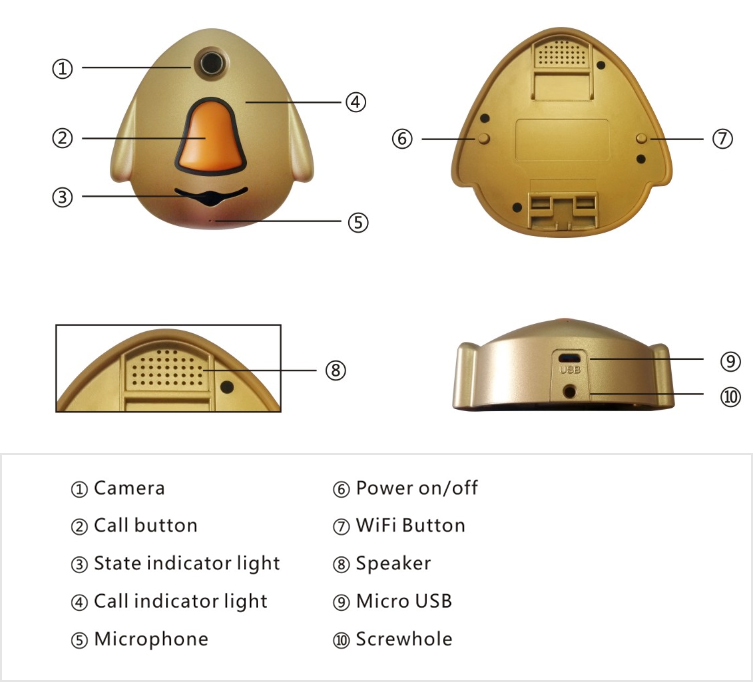

Indicator light |
State |
Description |
|
Call indicator light |
Blue flashing |
Pressed “call”button，and calling now. Notes: It is effective at the time of WiFi online and device has been binded. |
|
State indicator light |
Red and normally on. |
Add device normally |
|
Red flashing slowly |
WiFi Connecting… |
|
|
Red flashing quickly |
Server Connecting… |
|
|
Blue and normally on |
Charging… Notes: The state indicator light will go out when the battery level is 100% |
|
Video |
H.264 CODEC，Resolution 720x576 @15fps |
|
Audio |
Built-in microphone and speaker |
|
Network and security |
|
|
WiFi |
Support |
|
Wireless protocol |
Support 802.11b/g/n |
|
Wireless standard |
Support Station，Access Point， and Wi-Fi—Direct |
|
Security |
Support WPA&WPS 2.0 encryption |
|
Parameters and size |
|
|
Power |

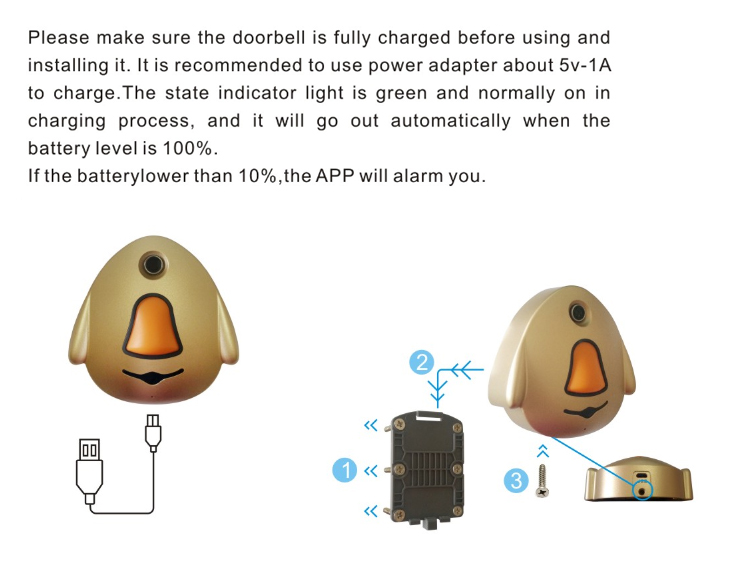

Micro USB interface，5V—1A |
|
Battery |
Battery powered，capacity: 2500mAH |
|
Power consumption |
Less than 0.5W |
|
Work environment |
Temperature: -10~60℃，humidity<90% |
|
Size |
Diameter：80mm,thickness:28mm |
