Feature: |
||
|

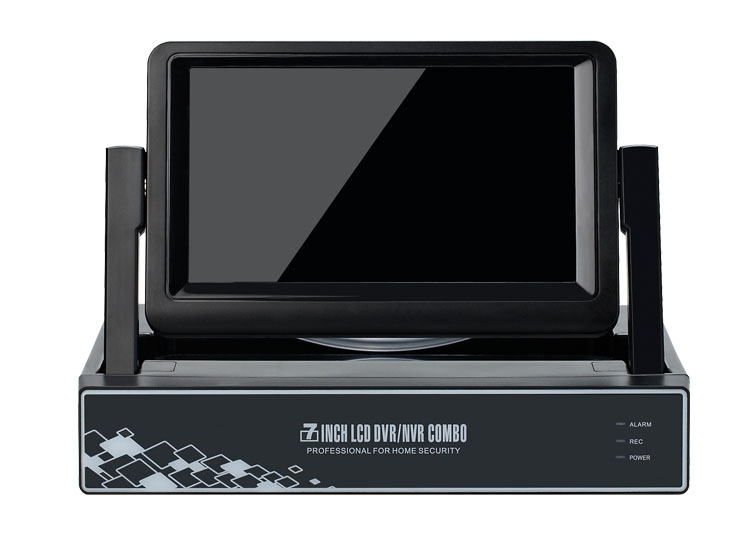

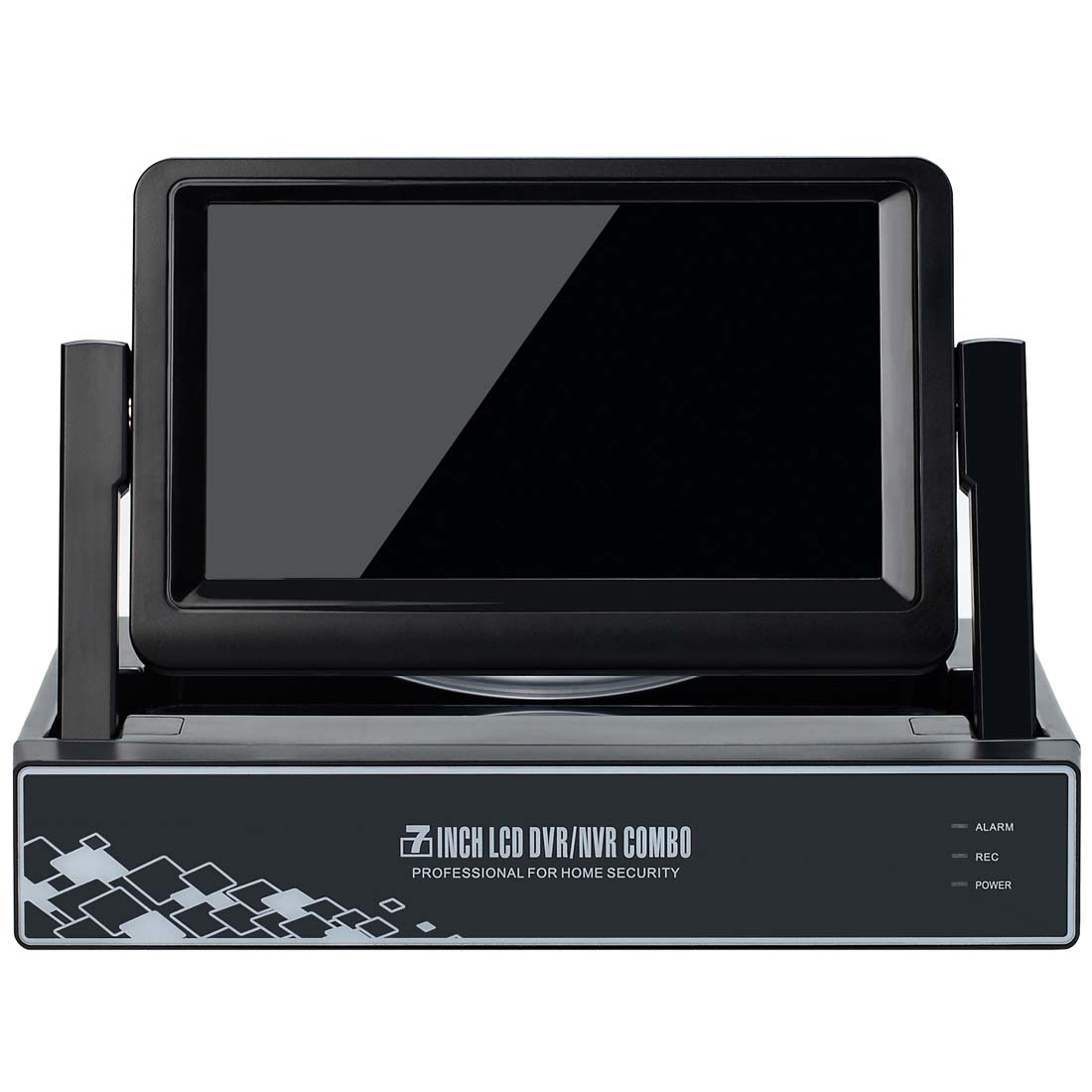

DC TIMES NVR system is special designed with 7" LCD monitor to realize review your footage easily on the built-in monitor which saves you huge cost for a separate monitor. Instant email alerts only when motion is detected, catching every essential moment, save hard drive record storage.
|
||
|
Specification |
||
|
System |
Main processor |
Hi3515C |
|
Operating system |
Embedded LINUX operating system |
|
|
System resources |
Simultaneous multi-channel real-time recording, playback, network operation, USB backup |
|
|
Interface |
Operator interface |
16-bit true color graphic menu operation interface, |
|
Preview |
1/4 screen |
|
|
Video |
Video input (IP) |
4ch 1080P/ 8ch D1 |
|
Video compression |
H.264 |
|
|
Display quality |
Max1920*1080 |
|
|
Playback quality |
1080P/D1 |
|
|
Decode |
1ch1080P |
|
|
Motion detection |
Support(depend on camera) |
|
|
Audio |
Audio compression |
G.711A |
|
Record & playback |
Intercom |
Unsupport |
|
Recording mode |
Manual>Alarm>Dynamic Detection>Timing |
|
|
Local payback |
1*1080P;4*720P |
|
|
Storage & Backup |
Search mode |
Search by Time/Calendar/Event/Channel |
|
Space occupation |
Video:CIF 4~5G/day*channel, D1 8~10G/day*channel;960H 12G~20G/day*channel |
|
|
Record storage |
HDD、Network |
|
|
External interface |
Backup mode |
Network backup, USB hard disk, USB burner, SATA burner |
|
Video output |
1ch HDMI output |
|
|
Audio I/O |
0/0 |
|
|
Alarm I/O |
0/0 |
|
|
Network interface |
1*RJ45 10M/100M, self-adaption |
|
|
USB interface |
3*USB2.0 |
|
|
General |
HDD |
1*SATA HDD(Max:4T) |
|
PTZ control |
Control PTZ device by network |
|
|
ONVIF |
Support |
|
|
Power supply |
12V/3A |
|
|
Power Consumption |
<15W(Without HDD) |
|
|
Operating temperature |
-20℃ ~ +55℃ |
|
|
Weight |
2.5KG |
|
Payment Terms:
1. Telegraphic Transfer (T/T)
· Usually we accept 100% T/T in advance;
· Subjected the order amount, we can accept 30% deposit T/T in advance + 70% balance T/T before the shipment.
2. Paypal
· 4.4%+$0.03 commission charges will be added into the amount.
3. Western Union
· Please offer us MTCN and the sender name after you make the payment.
4. Letter of Credit(L/C)
· L/C is available for the sea transit only. We don't accept L/C for the air transit.
· On condition that order amount reaches some one then we will accept L/C;
· We accept L/C at sight only;
