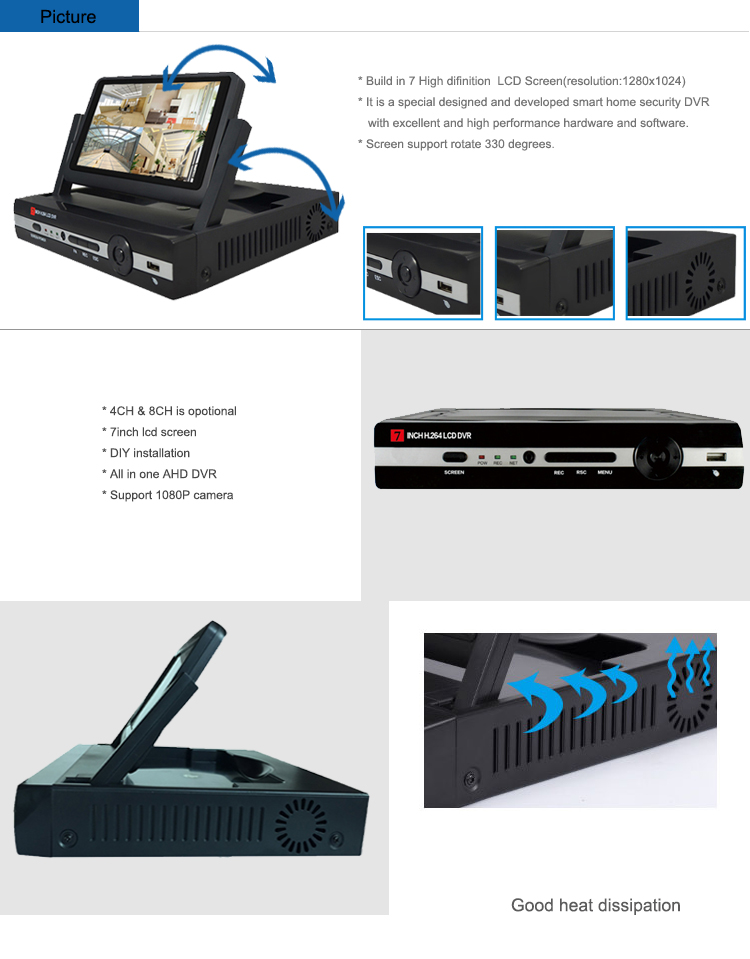

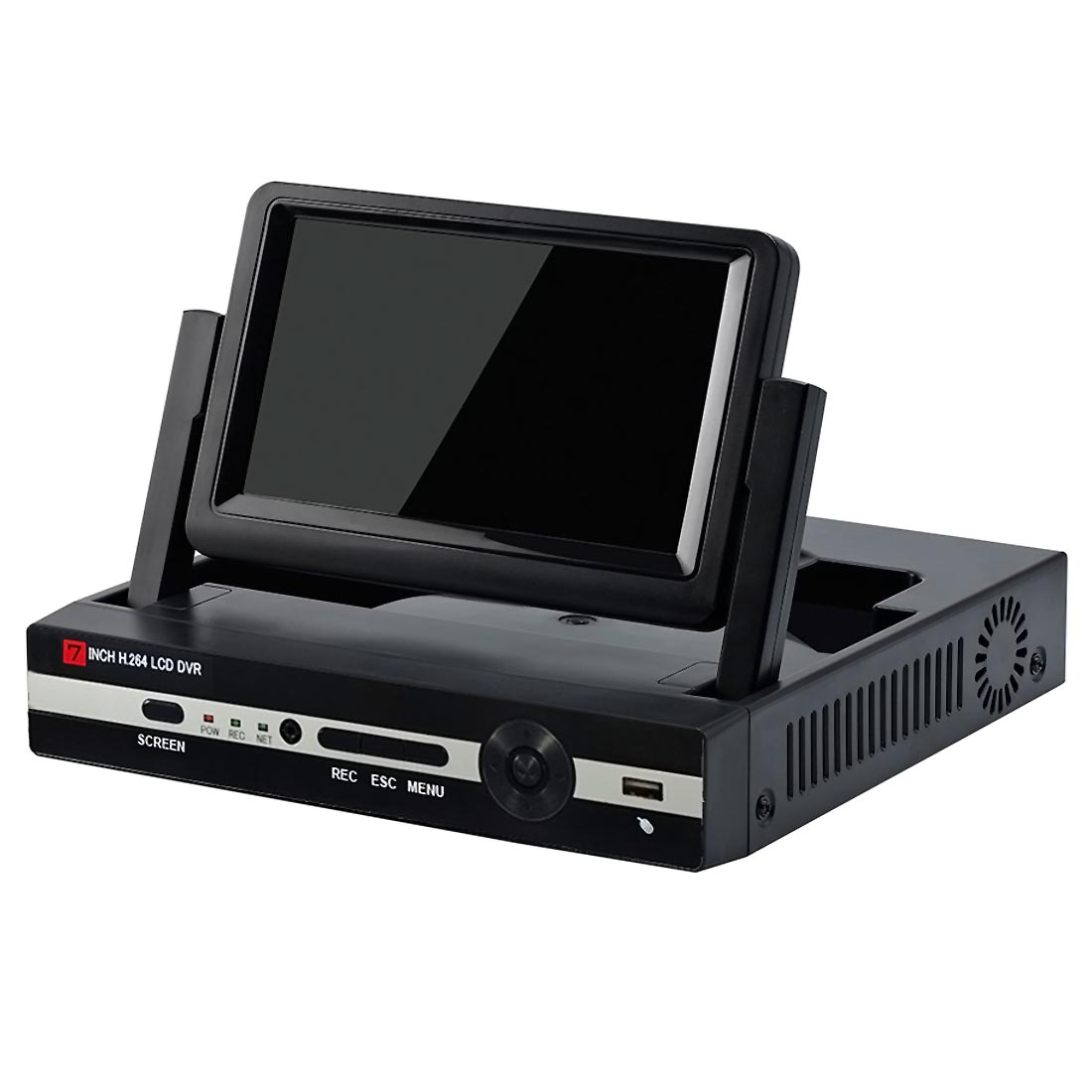

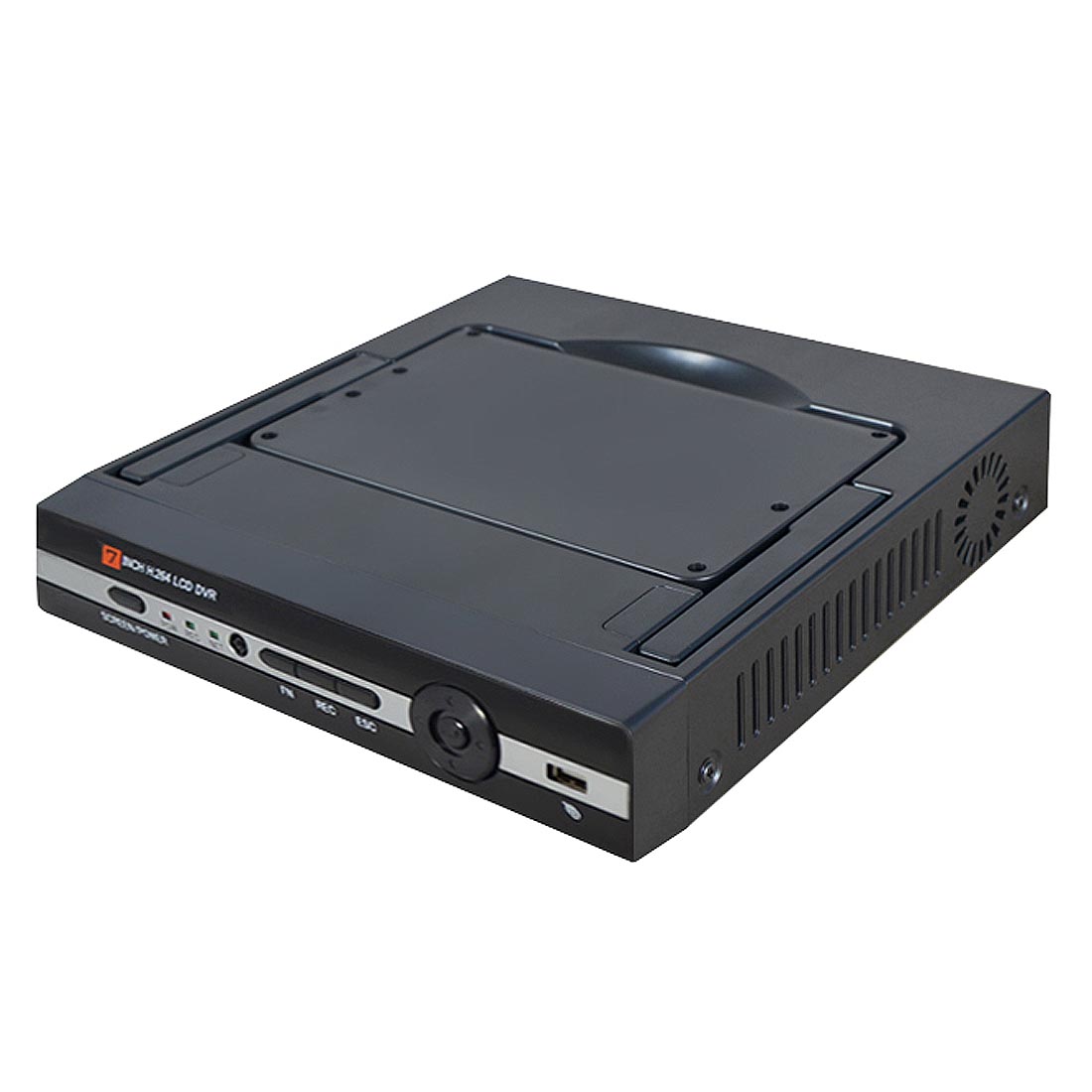

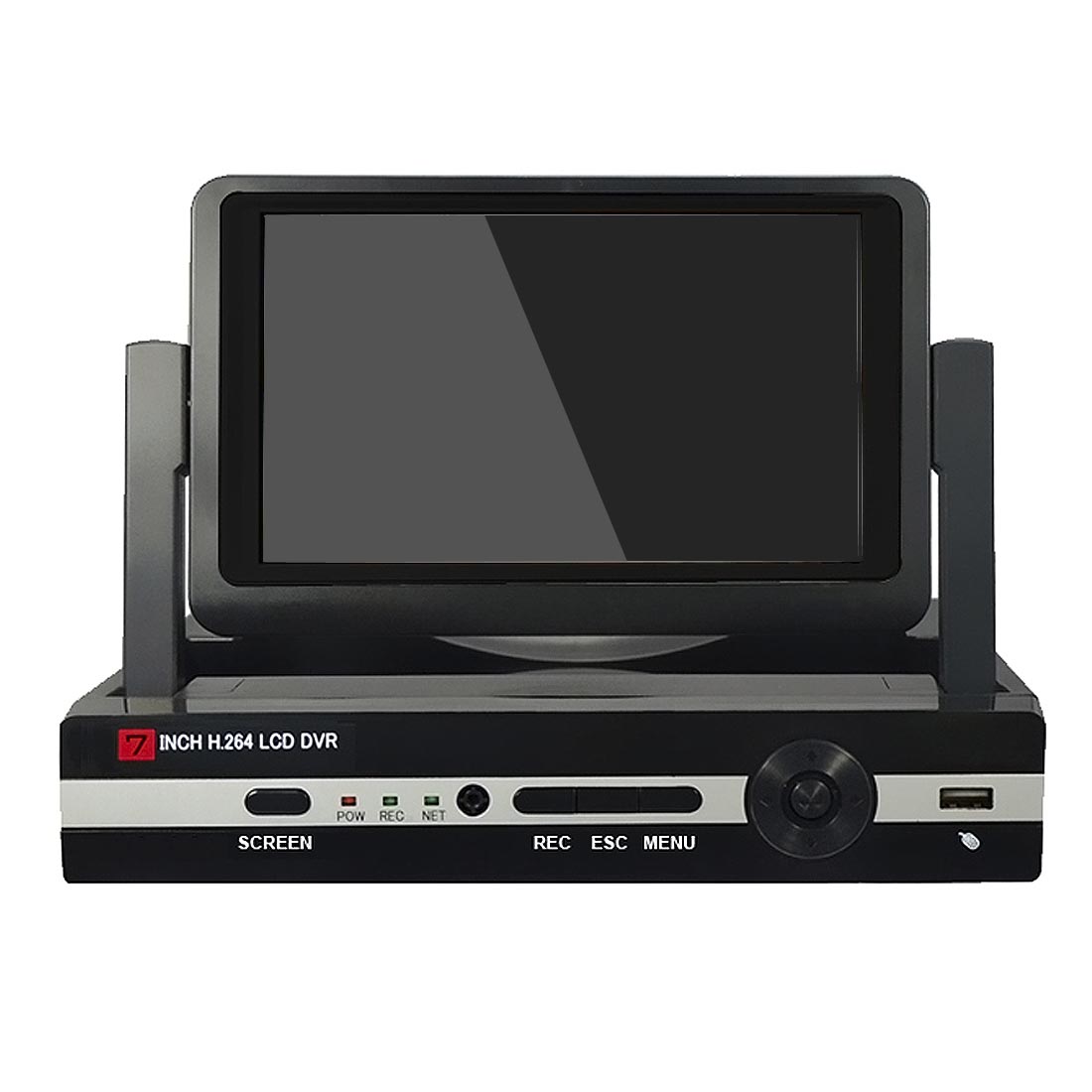

DC TIMES AHD DVR security system is special designed with 7" or 10.1" LCD monitor to realize review your footage easily on the built-in monitor which saves you huge cost for a separate monitor. Instant email alerts only when motion is detected, catching every essential moment, save hard drive record storage.

• CMS Software for multiple AHD DVR (up to 255 DVR simultaneously)

1. HD Video format
2. All in one Modulation Analog / Hybrid/ Network
3. Playback quality: real-time coding synchronously, real-time multi-channel playback synchronously.
4. Mobile monitor: support all kinds of mobile monitor (iPhone, Android,iPhone, iPad, Mini Pad, android phones)
5. Support multi-browser(IE,Chrome,Firefox,Safari.)
6. Support 28 languages: English, Arabic, Russian, Franch, Spanish, German etc.
7. Support HDMI, VGA output.
8. Easy backup: USB devices, network download
9. Cloud Technology make easy remote view by internet and mobile.
10. Support NTP(Internet timing), DHCP(automatically get IP),Email(mail service),UPNP(Universal Plug and Play).
11. Support zoom any area selected by the mouse under PELCO-D/P PTZ control protocol.
12. Support 1 SATA 4TB hard disk.
13. Support smart search in the self-defined areas in the playback of the recording.
14. Applied in large surveillance area such as home, office, bank, supermarket, gas station, factory etc.
15. It is a special designed and developed professional portable DVR, with excellent and high performance hardware and software.
16. All software are included in the CD, very easy remote network surveillance

Specification

System

Main processor

Hi3521

Interface

Preview

1/4/8/9

Video

Code

H.264（High Profile）

Monitor quality

HDMI

Encode ability

8*1080N@15fps/8*AHD-M

Decode ability

1*1080N@15fps/1*AHD-M

Multi-mode input

analog: 8*1080N;8*AHD-M;4*AHD-M;8*AHD-L;
hybrid: 4*AHD-M（analog）+4*720P（network）
Network only:8*720P;2*1080P+2*720P;

Motion Detection

Each screen can be set to 192 (16 * 12) detection areas;
multi-level sensitivity can be set (Limited local channel)

Audio

Audio compression

G.711A

Intercom

support

Record & playback

Record mode

manual>alarm>motion detection>timing

Local Playback

AHD-M/AHD-L/D1

Search mode

Search by time, calendar, event, channel

Storage & backup

Video storage

HDD, network

Backup mode

Network, USBhard disk, USB burner, SATA burner

External Interface

Video input

8ch BNC

Video output

1ch VGA, 1ch HDMI

Loop Vout

N/A

Audio I/O

4/1

Alarm I/O

N/A

Network interface

RJ45 10M/100M self-adaption

PTZ control

1*RS485, Support kinds of PTZ protocols

USB

3* USB 2.0 ports

HDD

1*SATA ports (Max4TB/per)

Wireless

N/A

General

Power supply

12V/3A

Power Consumption

<15W (without HDD)

Working environment

Temperature:0℃—+55℃,Humidity:10%—90%,
Atm:86kpa—106kpa

Weight

2.5Kg

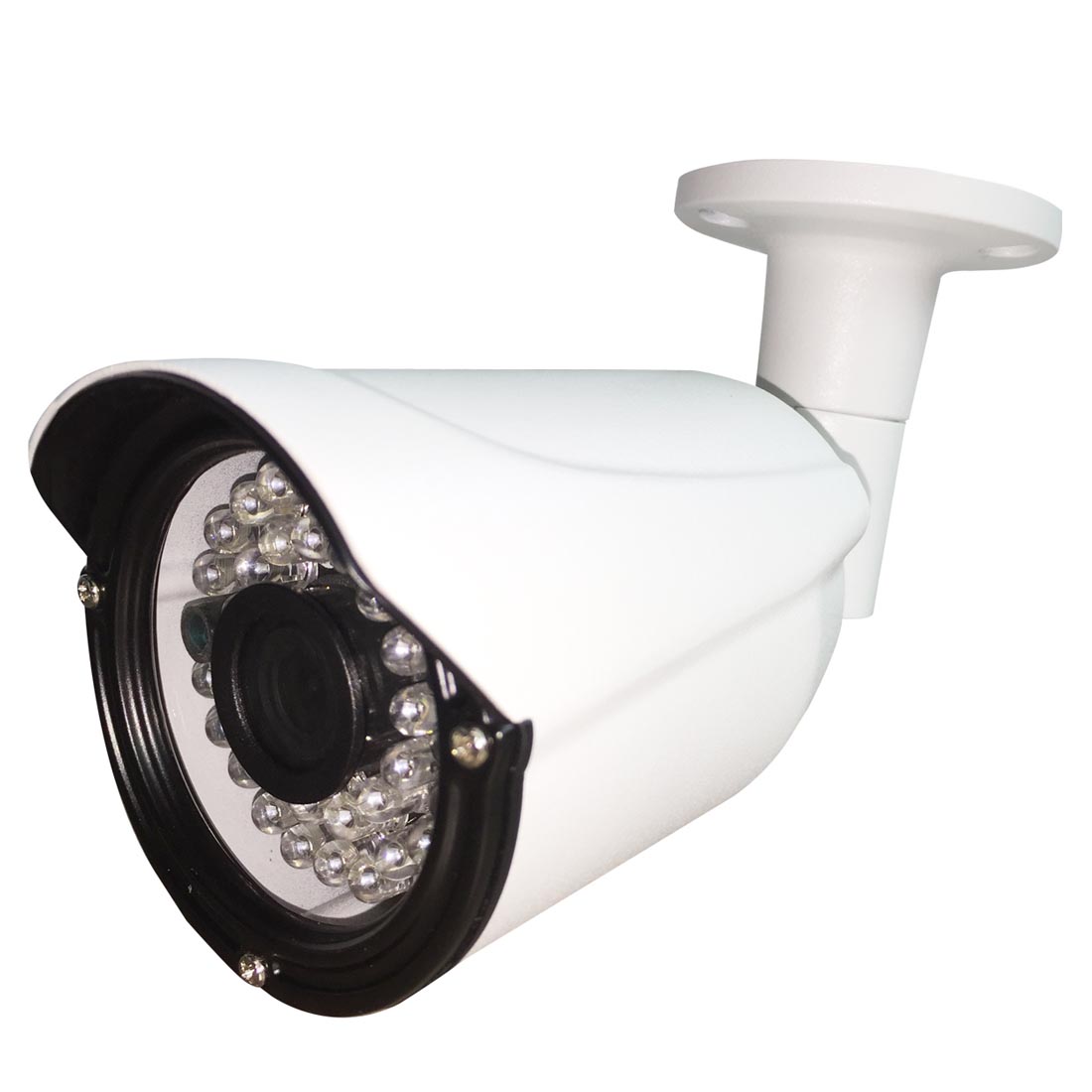

Camera

1 Mega Pixel

Details

Sensor

1/3” Progressive Scan Sensor

Signal System

PAL / NTSC

Resolution

1280 x720 16 : 9 High Defination

Minimum illumination

Color: 0.1 Lux; B/W: 0.01 Lux

Shutter

1/25s to 1/25,000s

Lens

3.6mm

OSD

Date Time & Title

White Balance

Auto

Day&Night

Auto / Color / BW

3D-DNR

Auto

Mirror/Flip

On / Off

Frame Specification

Three Streaming at the Same Time:
H.264 1280x720@30fps or below
H.264 640x480@30fps or below

S/N

> 39.1 Db

Interface

BNC

General Specification

Working Temperature/Humidity

-10℃ to +50℃ / 30% to 80% RH

Working Temperature/Humidity

-20℃ to +60℃ / 20% to 90% RH

Power Input

DC12V

Power consumption

≤6W

Weight

400g
