Produt Details Product Parameter

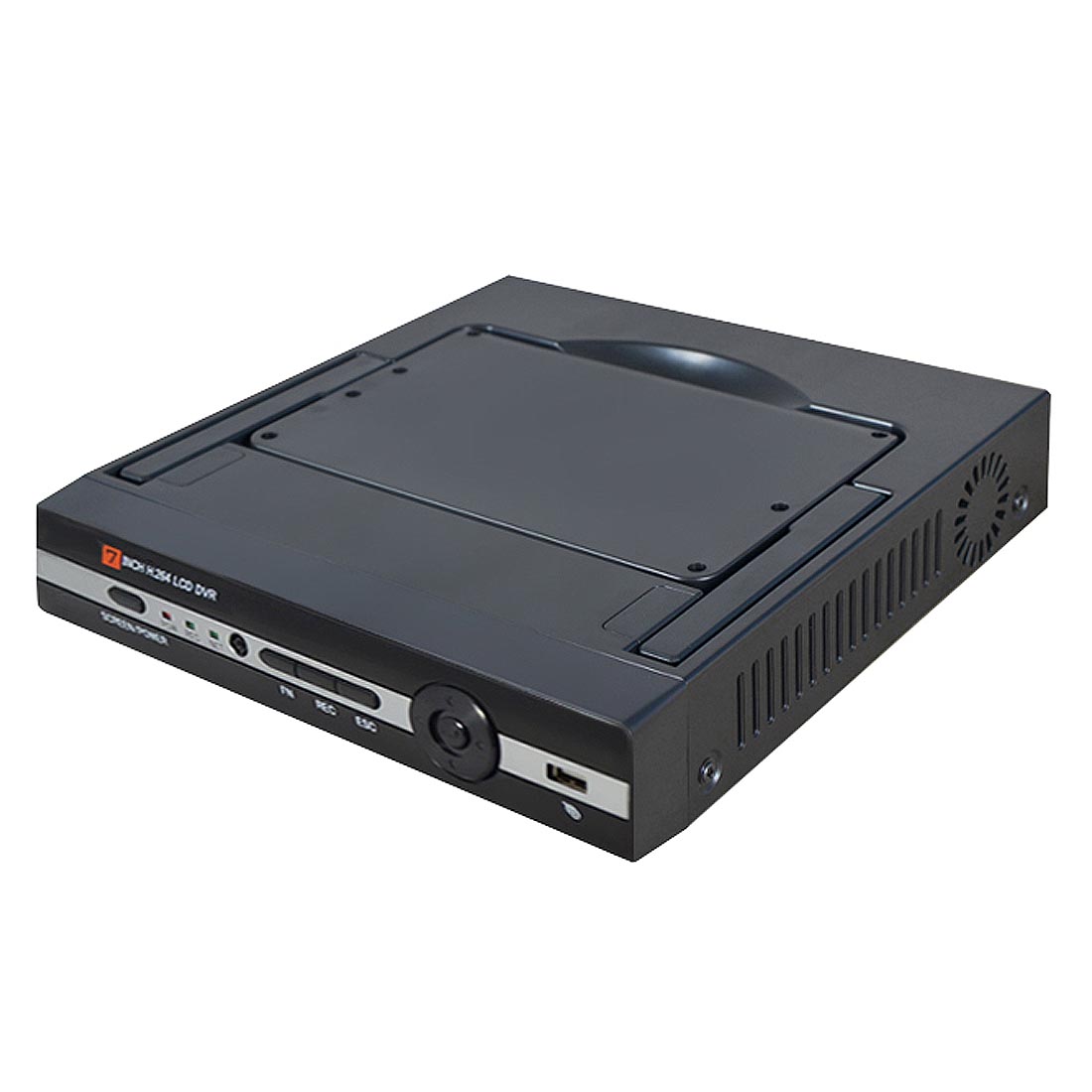

top home security systems|4CH 7inch top home security systems

Feature:

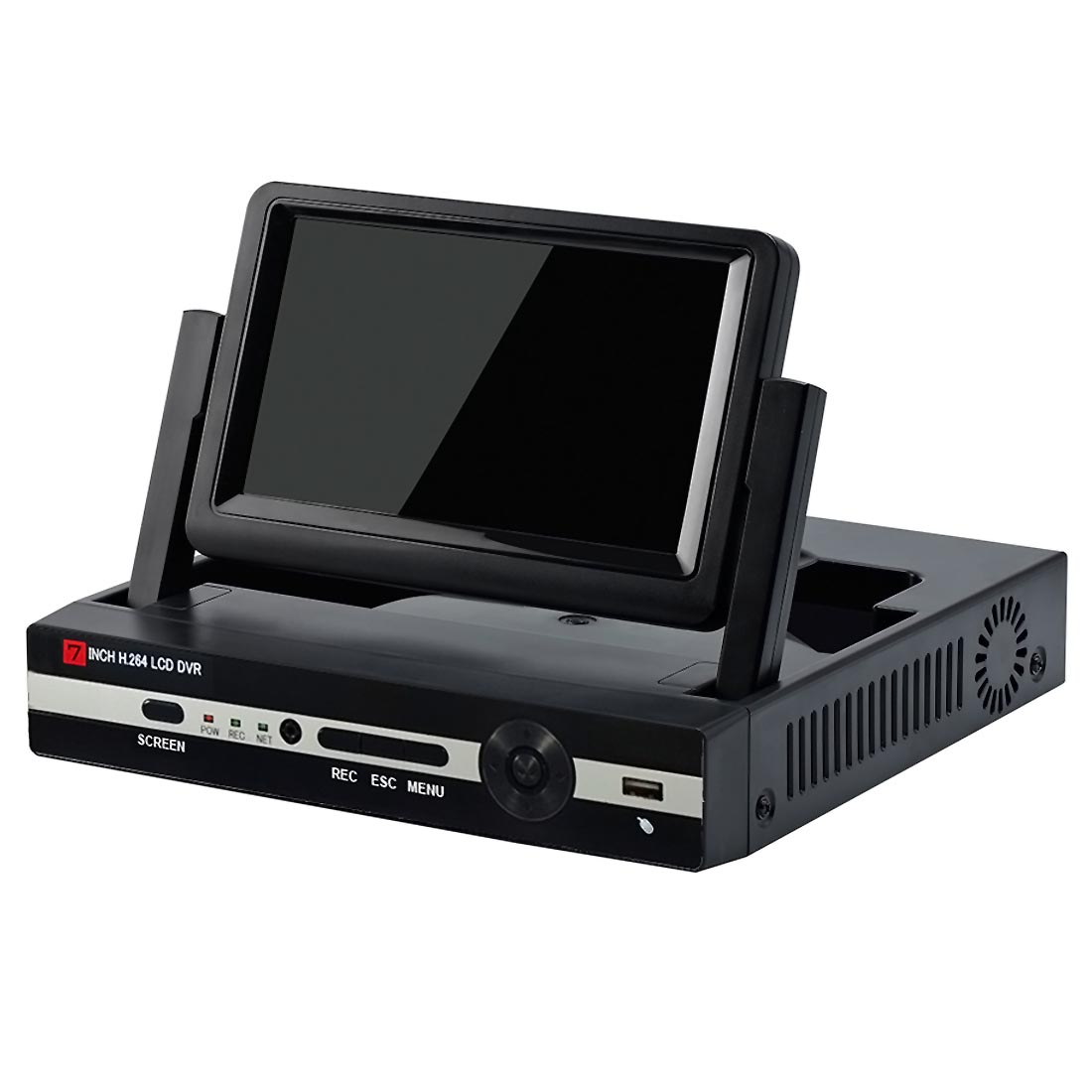

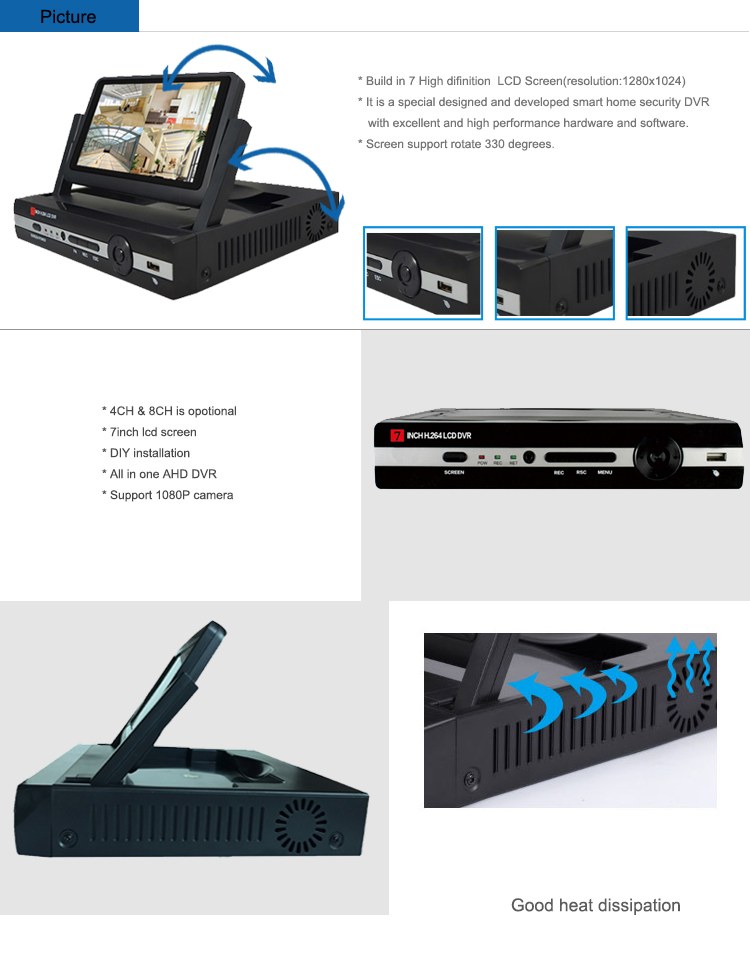

DC TIMES AHD DVR security system is special designed with 7" LCD monitor to realize review your footage easily on the built-in monitor which saves you huge cost for a separate monitor. Instant email alerts only when motion is detected, catching every essential moment, save hard drive record storage.

  • CMS Software for multiple DVR (up to 255 DVR simultaneously)
  • HD Video format
  • Playback quality: real-time coding synchronously, real-time multi-channel playback synchronously.
  • Mobile monitor: support all kinds of mobile monitor (iPhone, Android,iPhone, iPad, Mini Pad, android phones)
  • Support multi-browser(IE,Chrome,Firefox,Safari.)
  • Support 28 languages: English, Arabic, Russian, Franch, Spanish, German etc.
  • Support HDMI, VGA output.
  • Easy backup: USB devices, network download
  • Cloud Technology make easy remote view by internet and mobile.
  • Support NTP(Internet timing), DHCP(automatically get IP),Email(mail service),UPNP(Universal Plug and Play).
  • Support zoom any area selected by the mouse under PELCO-D/P PTZ control protocol.
  • Support 1 SATA 4TB hard disk.
  • Support smart search in the self-defined areas in the playback of the recording.
  • Applied in large surveillance area such as home, office, bank, supermarket, gas station, factory etc.
  • It is a special designed and developed professional portable DVR, with excellent and high performance hardware and software.
  • All software are included in the CD, very easy remote network surveillance

Specification: 4CH AHD DVR

System

Main processor

Hi3520D

Interface

Preview

4ch

Video

Code

H.264(High Profile)

Monitor quality

HDMI

Encode ability

4*1080N/4*AHD-M

Decode ability

1*1080N/1*AHD-M

Multi-mode input

analog: 4*1080N;4*AHD-M;4*AHD-L;

hybrid: 2*AHD-M(analog)+2*720P(network)

Network only:4*720P;8*1080P;4*1080P;1*1080P;8*720P ;

Motion Detection

Each screen can be set to 192 (16 * 12) detection areas;
multi-level sensitivity can be set (Limited local channel)

Audio

Audio compression

G.711A

Intercom

support

Record & playback

Record mode

manual>alarm>motion detection>timing

Local Playback

AHD-M/AHD-L/D1

Search mode

Search by time, calendar, event, channel

Storage & backup

Video storage

HDD, network

Backup mode

Network, USB hard disk, USB burner, SATA burner

External Interface

Video input

4ch BNC

Video output

1ch VGA, 1ch HDMI

Loop Vout

N/A

Audio I/O

4/1

Alarm I/O

N/A

Network interface

RJ45 10M/100M self-adaption

PTZ control

1*RS485, Support kinds of PTZ protocols

USB

3* USB 2.0 ports

HDD

1*SATA ports (Max4TB/per)

Wireless

N/A

General

Power supply

12V/3A

Power Consumption

<15W (without HDD)

Working environment

Temperature:0—+55,Humidity:10%—90%,
Atm:86kpa—106kpa

Dimension

280mm(L)* 225mm(W)* 45mm(H)

Weight

2.5Kg



top-home-security-systems





top-home-security-systems



loading

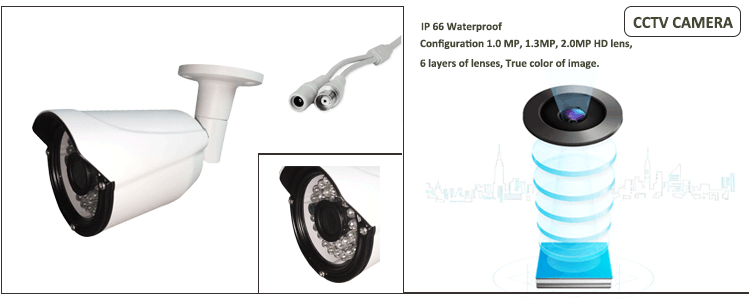

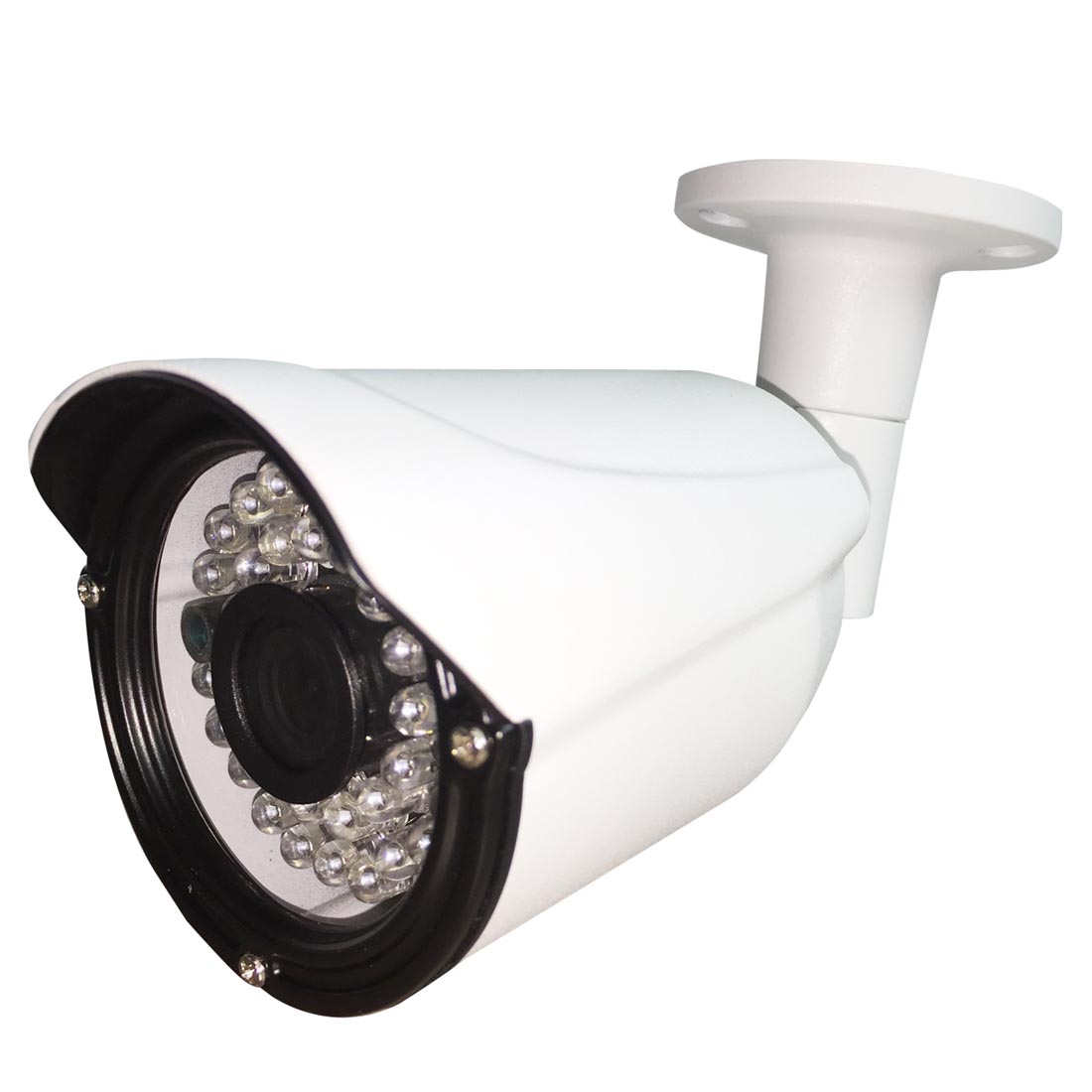

HD Camera Specification

1 Mega Pixel

Details

Sensor

1/3” Progressive Scan Sensor

Signal System

PAL / NTSC

Resolution

1280 x720 16 : 9 High Defination

Minimum illumination

Color: 0.1 Lux; B/W: 0.01 Lux

Shutter

1/25s to 1/25,000s

Lens

3.6mm

OSD

Date Time & Title

White Balance

Auto

Day&Night

Auto / Color / BW

3D-DNR

Auto

Mirror/Flip

On / Off

Frame Specification

Three Streaming at the Same Time:
H.264 1280x720@30fps or below
H.264 640x480@30fps or below

S/N

> 39.1 Db

Interface

BNC

General Specification

Working Temperature/Humidity

-10 to +50
