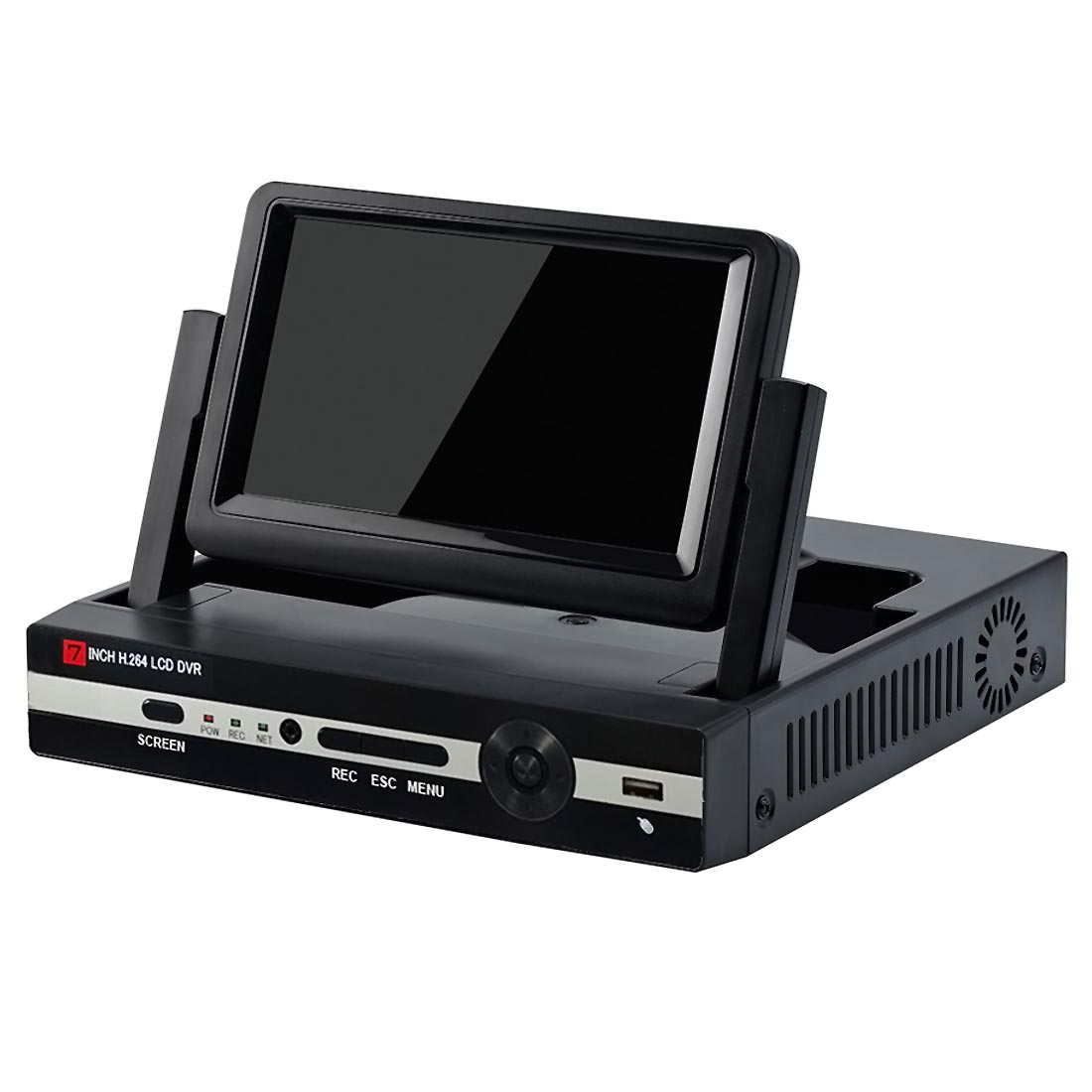

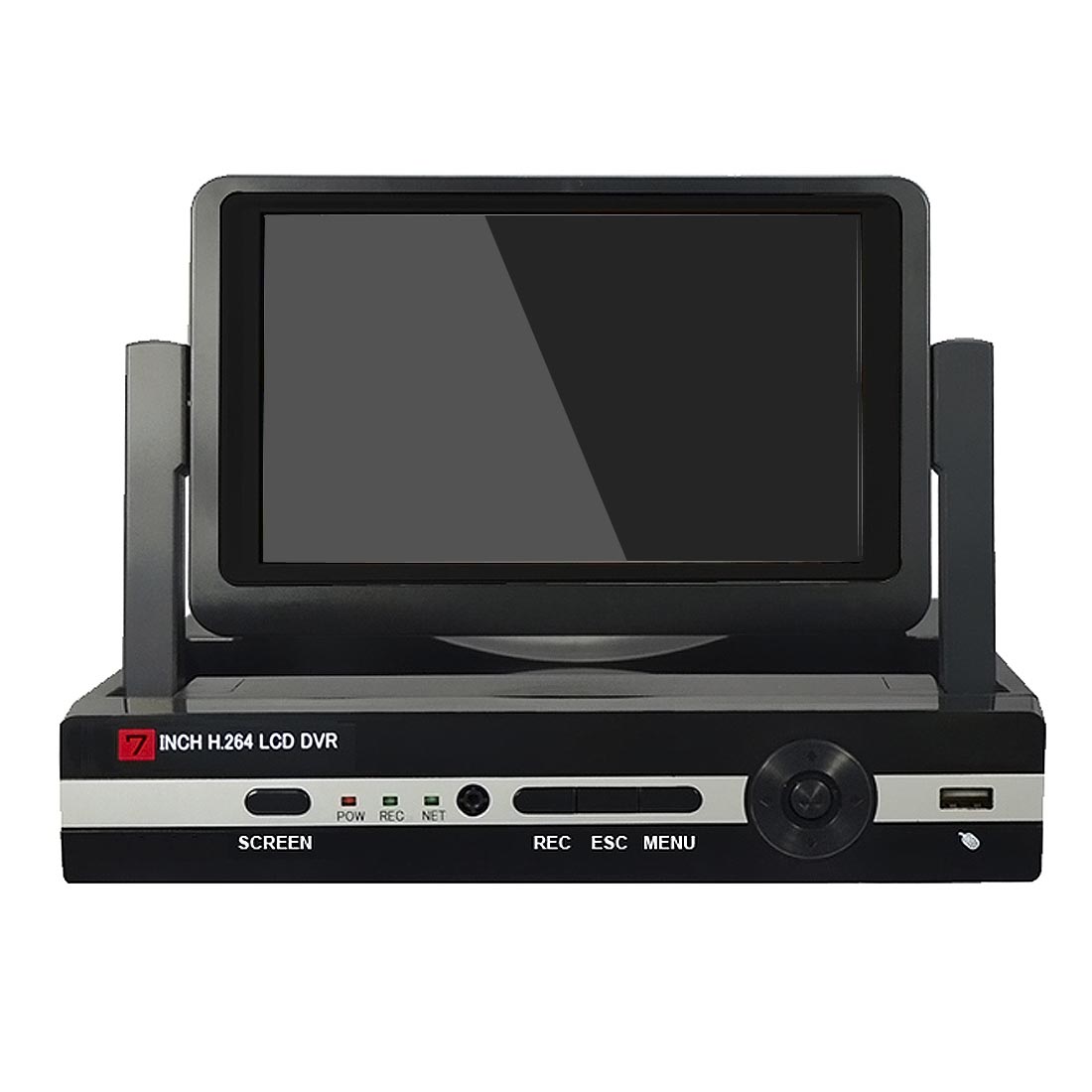

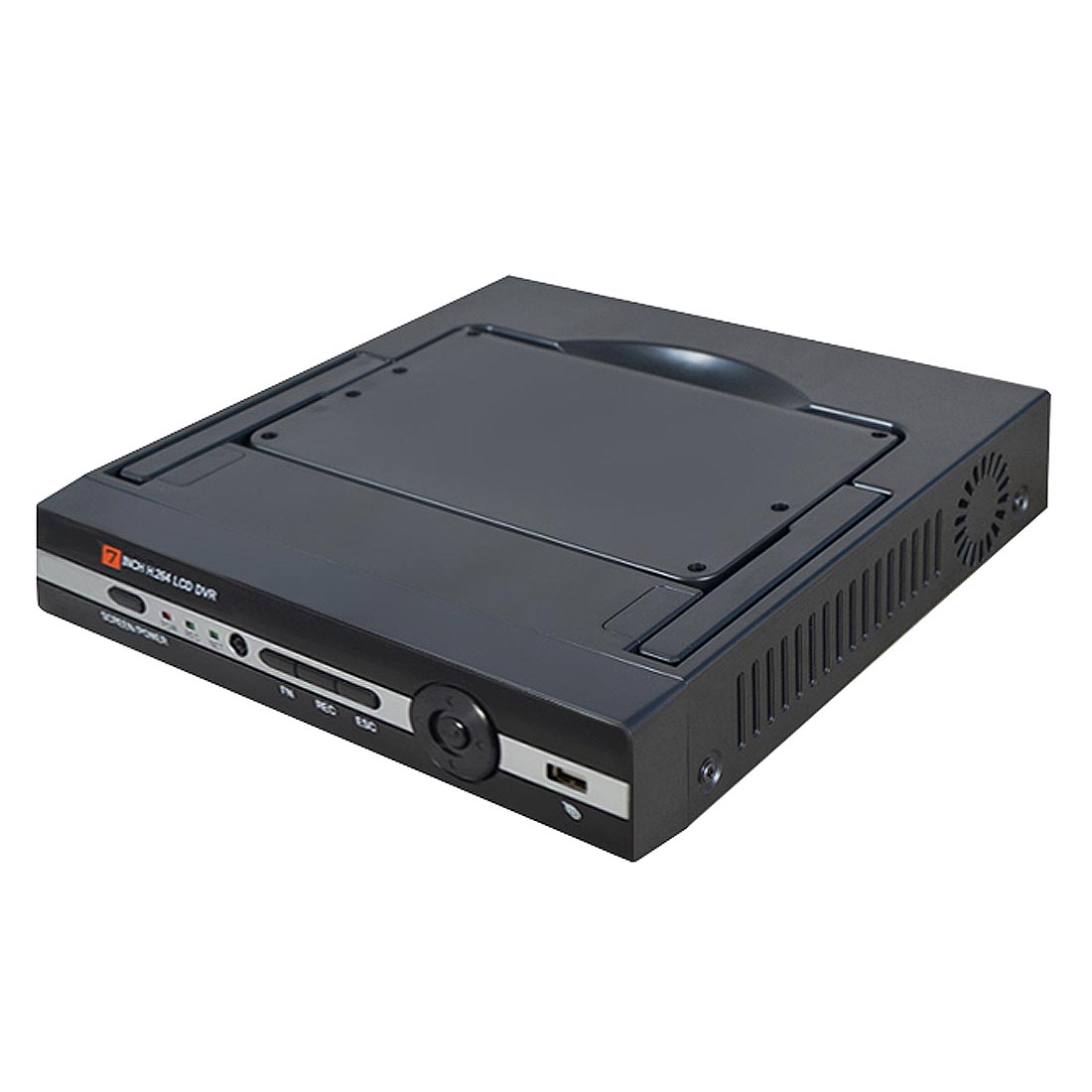

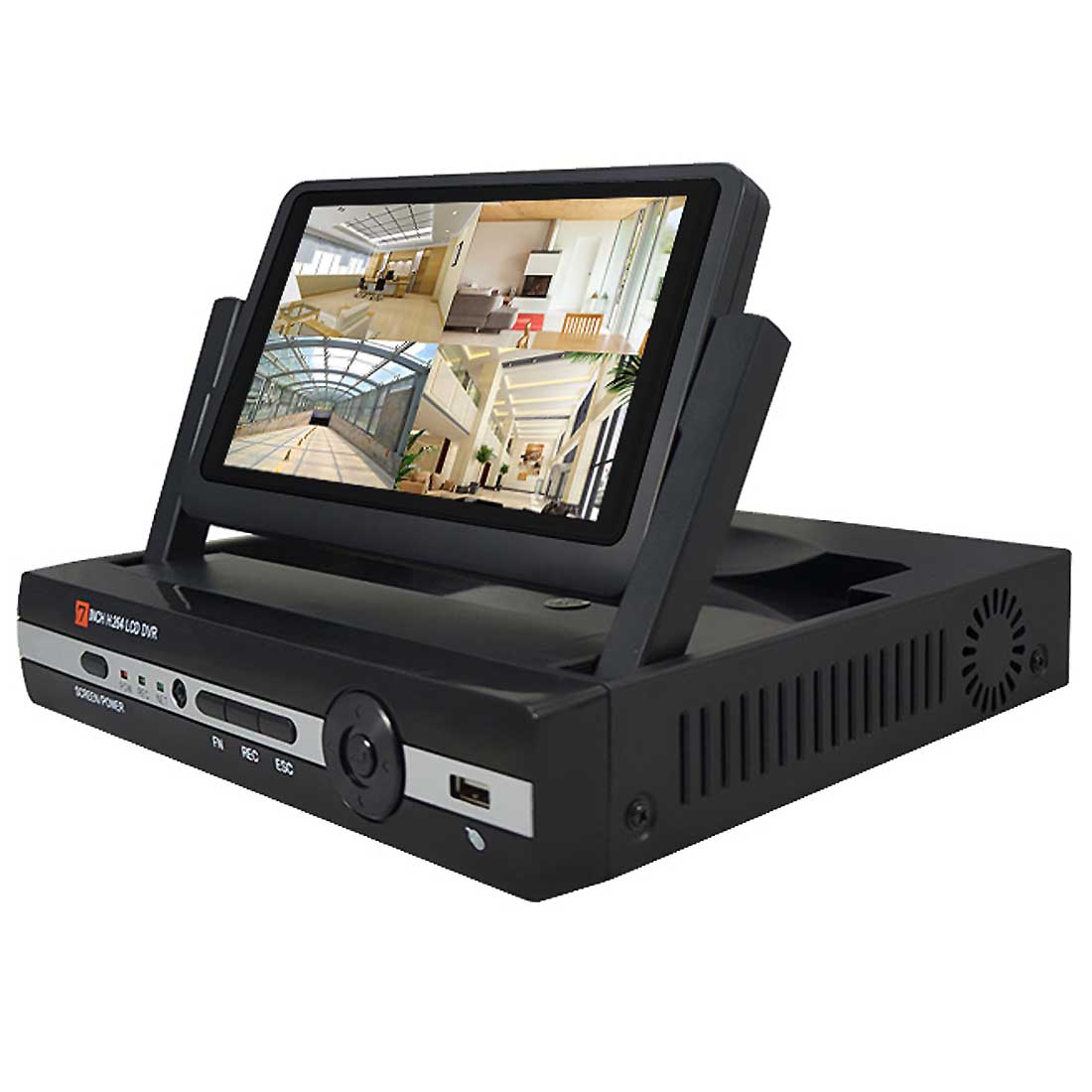

HD DVR recorder | AHD DVR 7inch 8CH

Feature:

DC TIMES AHD DVR security system is special designed with 7" or 10.1" LCD monitor to realize review your footage easily on the built-in monitor which saves you huge cost for a separate monitor. Instant email alerts only when motion is detected, catching every essential moment, save hard drive record storage.

• CMS Software for multiple AHD DVR (up to 255 DVR simultaneously)
• HD Video format
• All in one Modulation Analog / Hybrid/ Network
• Playback quality: real-time coding synchronously, real-time multi-channel playback synchronously.
• Mobile monitor: support all kinds of mobile monitor (iPhone, Android,iPhone, iPad, Mini Pad, android phones)
• Support multi-browser(IE,Chrome,Firefox,Safari.)
• Support 28 languages: English, Arabic, Russian, Franch, Spanish, German etc.
• Support HDMI, VGA output.
• Easy backup: USB devices, network download
• Cloud Technology make easy remote view by internet and mobile.
• Support NTP(Internet timing), DHCP(automatically get IP),Email(mail service),UPNP(Universal Plug and Play).
• Support zoom any area selected by the mouse under PELCO-D/P PTZ control protocol.
• Support 1 SATA 4TB hard disk.
• Support smart search in the self-defined areas in the playback of the recording.
• Applied in large surveillance area such as home, office, bank, supermarket, gas station, factory etc.
• It is a special designed and developed professional portable DVR, with excellent and high performance hardware and software.
• All software are included in the CD, very easy remote network surveillance

Specification

System

Main processor

Hi3521

Interface

Preview

1/4/8/9

Video

Code

H.264（High Profile）

Monitor quality

HDMI

Encode ability

8*1080N@15fps/8*AHD-M

Decode ability

1*1080N@15fps/1*AHD-M

Multi-mode input

analog: 8*1080N;8*AHD-M;4*AHD-M;8*AHD-L;
hybrid: 4*AHD-M（analog）+4*720P（network）
Network only:8*720P;2*1080P+2*720P;

Motion Detection

Each screen can be set to 192 (16 * 12) detection areas;
multi-level sensitivity can be set (Limited local channel)

Audio

Audio compression

G.711A

Intercom

support

Record & playback

Record mode

manual>alarm>motion detection>timing

Local Playback

AHD-M/AHD-L/D1

Search mode

Search by time, calendar, event, channel

Storage & backup

Video storage

HDD, network

Backup mode

Network, USBhard disk, USB burner, SATA burner

External Interface

Video input

8ch BNC

Video output

1ch VGA, 1ch HDMI

Loop Vout

N/A

Audio I/O

4/1

Alarm I/O

N/A

Network interface

RJ45 10M/100M self-adaption

PTZ control

1*RS485, Support kinds of PTZ protocols

USB

3* USB 2.0 ports

HDD

1*SATA ports (Max4TB/per)

Wireless

N/A

General

Power supply

12V/3A

Power Consumption

<15W (without HDD)

Working environment

Temperature:0℃—+55℃,Humidity:10%—90%,
Atm:86kpa—106kpa

Weight

2.5Kg
